Things You Worry About The Hot Melt Glue Stick Production Line

Hot Melt Glue Stick Production Line Equipment Configuration

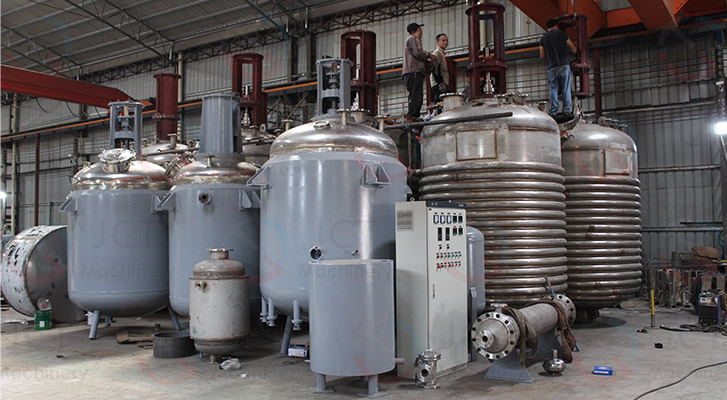

1. Reactor

Function: Uniformly mix and melt raw materials such as resin, tackifier, wax, filler, etc.

Requirements: High shear stirring, precise temperature control system (±1℃), vacuum degassing function.

Recommended configuration: Stainless steel jacket heating reactor, frequency conversion speed regulation, electric heating or thermal oil heating.

2. Filtration system

Function: Remove large particles or impurities, improve product smoothness, and reduce gun blockage.

Recommended configuration: High temperature and pressure resistant precision filter.

3. Extrusion molding machine/stick molding system

Function: Accurately extrude the colloid into a glue stick.

Requirements: Precision die design, stable pressure extrusion, precise size control.

Optional: Automatic cutting system to cut the glue stick according to the set length.

4. Cooling conveyor belt/cooling water tank

Function: Rapidly shape the glue stick to avoid adhesion or deformation.

Requirements: Uniform transmission, adjustable cooling speed, wind speed, and water temperature.

5. Automatic cutting equipment

Can achieve uniform length cutting.

The higher the degree of automation, the better the consistency of the finished product and the more efficient the packaging.

If you often need to switch between different diameters (such as from 7mm to 11mm, then to 15mm, etc.), JCT recommend the following configurations:

• Replaceable die assembly (quick-release type)
• Screw pump or metering pump pressure control system
• PLC touch screen control system (convenient for recording parameters corresponding to each specification)

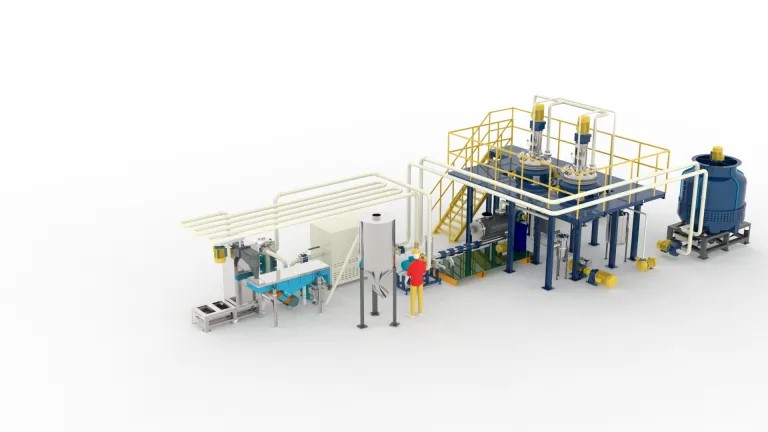

We can design hot melt glue stick production line for you:

1. ​Supports a variety of glue stick specifications
2. Equipped with a standard mold replacement system
3. Equipped with constant temperature precision control, degassing, cooling, and cutting integrated design
