Hot Melt Glue For Bonding Sound Insulation Materials Production Line

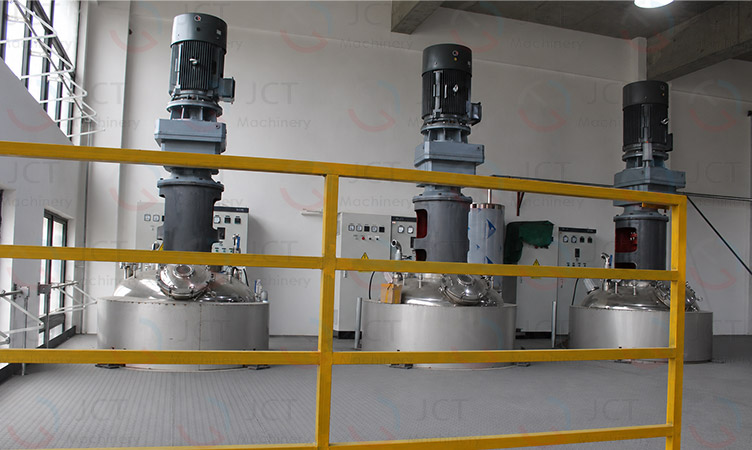

Hot Melt Glue For Bonding Sound Insulation Materials Production Line Equipment

1. Melting tank
2. Reactor
3. Heating system
4. Vacuum system
5. Pipeline filter
6. Forming and packaging system

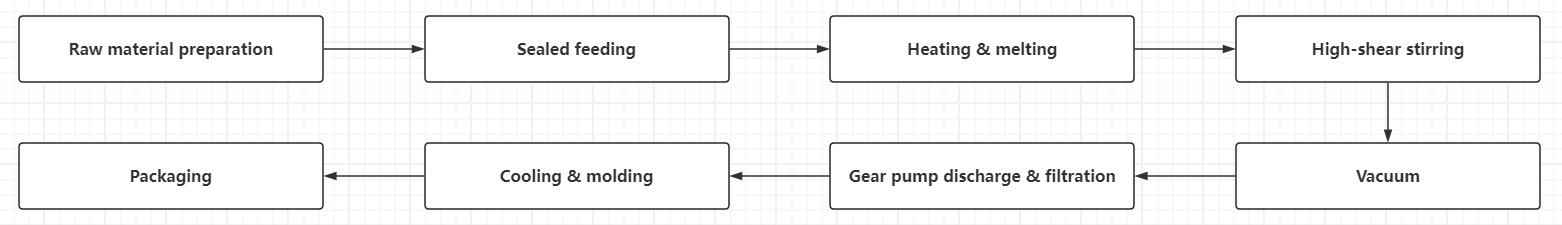

Hot Melt Glue For Bonding Sound Insulation Materials Production Process

This hot melt glue is widely used in:

• Automotive sound insulation bonding
• Automotive interior trim lamination
• Sound-absorbing cotton lamination
• Building sound insulation panel lamination
• Damping sheet bonding
• Industrial noise reduction materials
• Textile composite materials

Hot Melt Glue For Bonding Sound Insulation Materials Production Line FAQ

1. We want to produce adhesives for automotive interiors/sound insulation. Should we choose a conventional hot melt glue production line or a PUR production line?

This depends on the testing standards of your target customers (such as OEMs or Tier 1 suppliers):

• Automotive-grade sound insulation (PUR strongly recommended): Car roofs, engine compartment sound insulation, and doors have stringent requirements for weather resistance and resistance to high and low temperatures (the interior temperature can reach over 90°C in summer). PUR (moisture-curing polyurethane) is an irreversible chemically cured adhesive with high temperature resistance and no VOCs, making it the mainstream adhesive type specified by OEMs.
• General building/appliance sound insulation (EVA/PO/pressure-sensitive adhesives are also options): If you are producing sound insulation panels for building walls, general packaging pads, or room-temperature sound-absorbing pads for household appliances, conventional non-reactive hot melt glue lines (EVA or PO polyolefin) are more cost-effective and easier to operate and maintain.

2. Automotive sound insulation materials have extremely high requirements for "odor" and "VOC". How can the equipment ensure that the adhesive meets the standards in the process?

The odor and VOC levels of adhesives depend not only on the formulation but also, and perhaps more importantly, on the "vacuum devolatilization" capability of the production equipment. Our production line has undergone targeted upgrades in its design:

• Ultra-high power high vacuum system: During the later stages of reaction/melting, the system maintains a high vacuum (less than -0.096 MPa), forcefully removing residual small-molecule odor-causing monomers and volatiles from the resin and additives.
• High-efficiency vacuum condensation and recovery: The extracted volatiles are efficiently intercepted by a multi-stage condenser, protecting the vacuum pump and preventing odors in the workshop.
• Fully enclosed nitrogen protection: Prevents materials from oxidizing and browning due to contact with air at high temperatures, thereby reducing the generation of secondary odors.

3. If I purchase your equipment, can you provide matching hot melt adhesive process formulas and raw material sourcing?

Yes, we offer complete turnkey solutions including equipment, formulation, and factory layout.

We understand that our clients buy equipment to sell products. For sound insulation material bonding, we not only provide high-quality reaction and molding hardware, but also offer basic process formulation guidance based on your market positioning, and connect you with high-quality domestic raw material suppliers to help you quickly start production.

4. If we provide our existing materials and processes, can we conduct a trial run at your factory with the materials?

Welcome! We have dedicated testing equipment in our factory.

You can bring your own materials or have us purchase the raw materials for you. Accompanied by our technical engineers, you can use our equipment to conduct on-site material mixing, vacuum dehydration, and reaction simulation. Through actual testing, you can directly observe the material mixing effect, discharge speed, and molding quality, ensuring the equipment fully meets your expectations before signing the order.

Why choose our hot melt glue for bonding sound insulation materials production line turnkey project?

• Extensive experience in hot melt adhesive production
• Support for formulation and process guidance
• Customized automated production lines
• Professional after-sales service team

If you are looking for stable and efficient hot melt glue for bonding sound insulation materials production line equipment, please contact us for professional technical solutions and equipment quotations: +86-181 3837 3963 (Whatsapp, Wechat), jctmixing@outlook.com.
