Automotive roof hot melt glue typically has high bonding strength, high temperature resistance, low odor and good initial tack, and is widely used in bonding automotive interior materials.
Product Specification:
| Name | Specification |

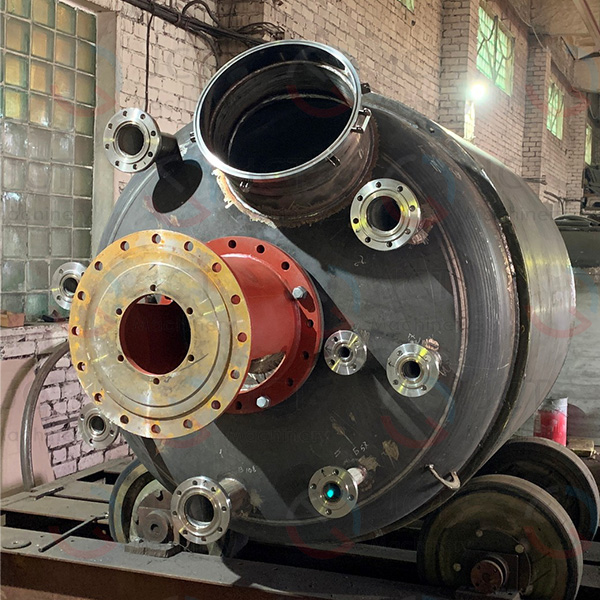

| 500L reactor | 11kW-6P general motors |
| Helical gear reducer | |
| 204B mechanical seal | |
| DN250 quick opening feeding hole, DN80 equipment mirror | |
| Cylinder specifications for 900x750xδ6 | |
| The jacket is DN1000Xδ 6, the material is Q235-B carbon steel | |

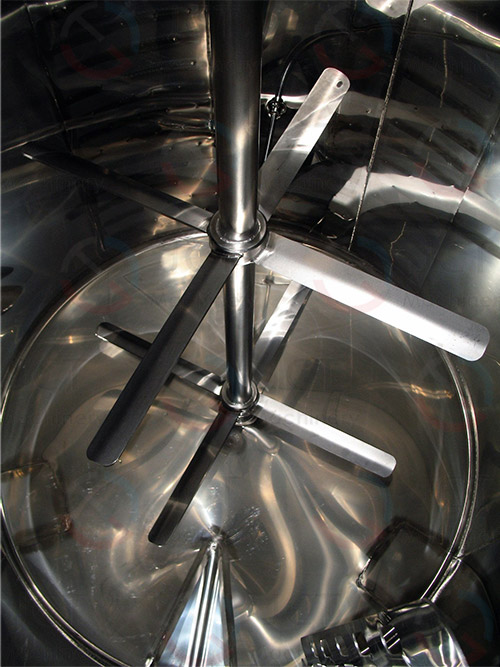

| The spindle is Φ70, the material is SS304, 0-87rpm. Paddle type: spiral + anchor + inclined paddle type (enhanced) | |
| DN65 didsharge port, the nozzle according to the requirements | |
| Inner cylinder and blade grinding and polishing | |
| Internal cylinder vacuum resistance | |
| Resistance to internal pressure 0.3MPa | |
| The nozzle and the temperature can be designed according to the requirements | |
| Electronic control cabinet | Main motor-control, feed pump, vacuum pump, oil pump, discharge pump control, temperature dispaly, temperature control, leakage and overload protection, instrumentation, etc. |
**Can be designed according to actual needs.
1. Suitable for high-viscosity materials
The equipment can process high-viscosity polymers and rubber materials.
2. Stable temperature control
Automotive roof hot melt glue production line is equipped with a precise temperature control system to ensure stable adhesive performance.
3. High degree of automation
PLC control system can be configured for automated production.
4. Customizable design
The production line can be customized to meet customer capacity requirements.
Automotive roof hot melt glue is mainly used in:
Automotive headliner materials are typically composed of fabric, foam, and substrate layers, requiring specialized hot melt glue for bonding.
