Choose EVA or PUR Hot Melt Glue Production Line?

With the increasing prevalence of automated production lines globally and the advancement of green manufacturing policies, more and more adhesive manufacturers are planning to build or upgrade their hot melt adhesive production lines.

Faced with the most mainstream EVA hot melt glue and PUR hot melt glue on the market, many companies often feel confused in the early stages of investment: What are the differences between these two production lines? Which one is more suitable for their market positioning? As a professional service provider with many years of experience in the chemical machinery field, today we will provide you with a comprehensive breakdown of the core differences between these two production lines and bring you a high-return turnkey project solution for hot melt glue production lines.

Essential Difference In Curing Mechanism

1. Process environment and sealing requirements

• EVA hot melt glue production line: This is an open or semi-open system. The production process only requires conventional heating, mechanical stirring, and vacuum degassing; air isolation is not necessary.
• PUR hot melt glue production line: This requires a completely enclosed, water- and oxygen-free environment. A high-purity nitrogen (N₂) protection system must be used throughout the entire production process. This is because if PUR comes into contact with even trace amounts of moisture in the air, it will prematurely and irreversibly solidify inside the reactor, rendering the entire reactor and equipment unusable.

2. Core stirring and reaction equipment

• EVA hot melt glue production line equipment: Heavy-duty kneaders, multi-functional high-power dispersers, or twin-screw extruders are typically used. Because the EVA system has extremely high viscosity in the initial melting stage, strong mechanical shear forces are primarily relied upon to disperse the high-viscosity fillers and resin.

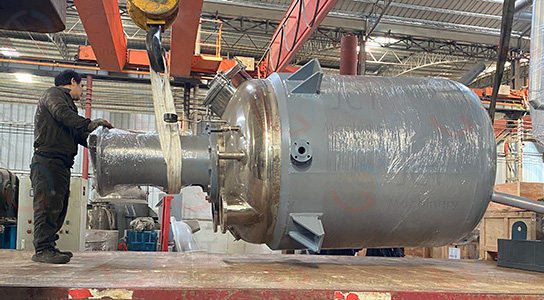

• PUR hot melt glue production line equipment: The core equipment is a precision high-viscosity vacuum reactor. It requires a special composite wall-scraping agitator. Furthermore, due to extremely stringent sealing requirements, its shaft seal must employ an ultra-high-specification double-end mechanical seal, and be kept completely dry by purging with cooling oil or nitrogen.

3. Temperature control accuracy

• EVA hot melt glue production line: Uses conventional heat transfer oil or electric heating, requiring relatively high temperature control accuracy.
• PUR hot melt glue production line: Must be equipped with a precision-grade temperature control system (TCU). The prepolymerization reaction of polyurethane is accompanied by intense chemical exothermic reactions; the system must have the ability to switch to cooling or heating within seconds, and temperature control must be accurate to ±1℃, otherwise emulsification or gelation can easily occur.

4. Molding and filling system

• EVA hot melt glue production line: Products are primarily in granule, strip, or block form. Can be equipped with a water ring granulator or a water-cooled extrusion strip mill, allowing products to be directly exposed to air and water for cooling.
• PUR hot melt glue production line: Strictly prohibits contact with any moisture. Must be equipped with a fully automated precision filling line. The filling head has vacuum suction and nitrogen sealing functions to ensure the finished product is completely isolated from air before opening and use.

Why choose our hot melt glue production line turnkey project?

Investing in a high-standard hot melt glue production line is definitely not as simple as buying a few reactors. From plant design, process flow, equipment selection to formula debugging, any oversight in any link can prolong the commissioning cycle. Our hot melt glue production line turnkey project offer the following core advantages:

1. Integrated Service: Equipment + Formulation + Process Layout

We not only provide high-quality manufacturing equipment, but also offer comprehensive technical support. We possess a mature database of EVA/PUR hot melt glue formulations, enabling us to customize formulation upgrades and provide on-site process guidance for specific customer applications (such as automotive-grade low-VOC, high-speed e-commerce box sealing, and narrow-bezel dispensing).

2. Intelligent PLC-Based Encrypted Control System

The entire control system utilizes a high-end PLC for centralized control, supporting one-click digital storage and retrieval of multiple production formulas, achieving automated and precise quantitative feeding. For the complex reaction curves of PURs, the system possesses strict security interlocking logic. More importantly, we provide dedicated formula encryption technology, effectively protecting our clients' core technological assets from leakage.

3. Extensive Global Delivery Experience and CE Certification

Our hot melt glue production line equipment meets international technical standards and holds EU CE certification. Our engineering team has extensive overseas delivery experience, with a track record spanning multiple countries and regions in Europe, Southeast Asia, and Africa. No matter where you are, we can provide truly worry-free, end-to-end delivery, from basic plant design and 3D piping layout to on-site installation and commissioning and employee training.

Start your hot melt glue production line project now!

Whether you're a newcomer to the chemical industry or an established adhesive manufacturer looking to expand, we can tailor a production line configuration that best suits your budget and capacity needs.
